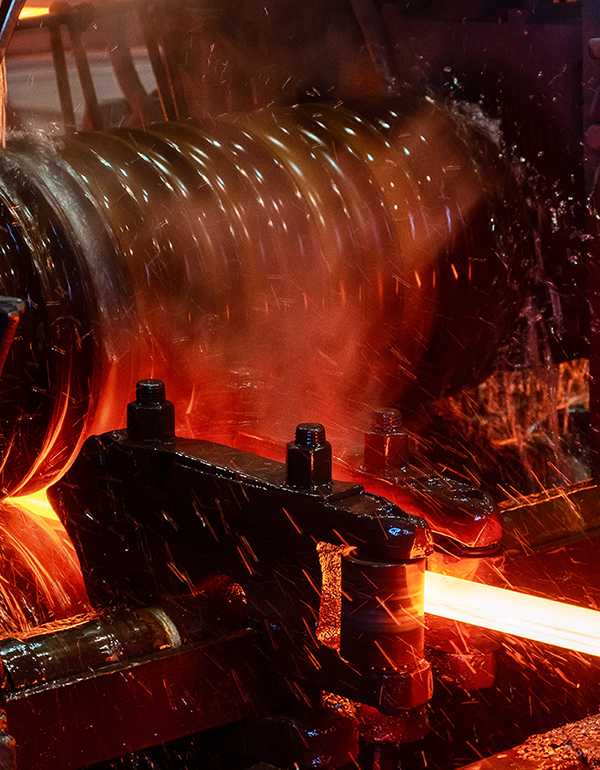

Graphitic Steel Rolls
The graphitic steel is a special alloy steel base roll which is similar to adamite rolls but with a small amount of fine graphite in its microstructure. The precipitated graphite in its microstructure acts to improve wear-resistance and resistance to fire cracking making it superior to normal steel rolls.
Applications
- Mills having problems with fire cracking such as medium and heavy section mills.
Grades
- GS-50 (48-53 Shore C)
- GS-55 (53-57 Shore C)
Mechanical Properties
- Tensile Strength: 450-700 Kg/mm²
- Bending Strength: 650-1000 Kg/mm²
| Chemical Composition | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Grade | Hardness (Shore C) | C% | Mn% | Si% | S% | P% | Cr% | Ni% | Mo% |
| GS-50 | 48-53 | 1.0-1.6 | 0.5-1.0 | 0.3-0.7 | 0.05 Max | 0.05 Max | 0.8-1.2 | 0.8-1.2 | 0.2-0.5 |
| GS-55 | 53-57 | 0.5-0.8 | 0.5-1.0 | 0.3-0.7 | 0.05 Max | 0.05 Max | 0.8-1.2 | 0.8-1.2 | 0.2-0.5 |
